360 Interactive Spin



360 Shooting Tools and Specs


Number of rows1 row
Frames per row24 frames
Capture time45 seconds
Edit time10 minutes
Turntable

360 Photography Turntable Silver Medium

SoftwareVisere Captura, Version 1.0.35989
License typeVisere Captura 360 Photography
Accessories Tripod
Camera and lensCanon R100 with the EF 35mm 1:1.4 L fixed focal length lens
LightingMedium LumiPad 360 Product Photography Lighting System
360 HTML ZipBearWithHotspots.zip
Index.html

360 Teddy Bear


360 Creation Process

Creating a professional multi-row 360 project doesn’t require advanced photography skills. Create your own professional 360 multi-row projects and understand the process of working with multiple rows. In the following example, we used a hand-built Harley Davidson motorcycle with three different rows.

Shooting

We used Visere Captura with a pre-crop rectangle ratio of 600x433 to output 24 images per row.

360 Creator

  1. We cleared up all the settings, by deleting the 360Creator.ini and .json files from the VisereCaptura settings folder:
  2. We selected the 24 images from Visere Captura and pressed the 360 Creator.
  3. After all the images loaded into the creator we resized them all to fit in a 2500x2500 window.
  4. We set the preview window width to 600.
  5. To get a small and reasonable output size, we set the Output File Format to JPEG (not PNG or Auto).

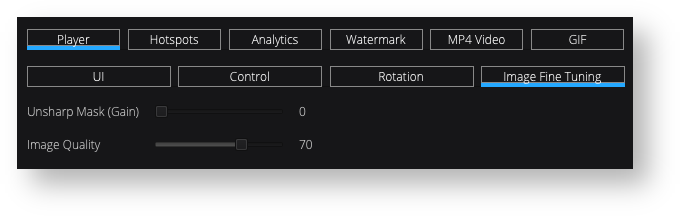

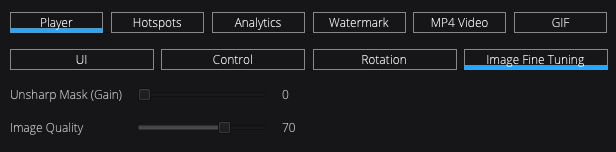

  6. We went to Advanced Settings then Player / Image Fine Tuning and set image quality to 70%.  Visual image degradation, from JPEG compression, tends to be noticeable below 60%.

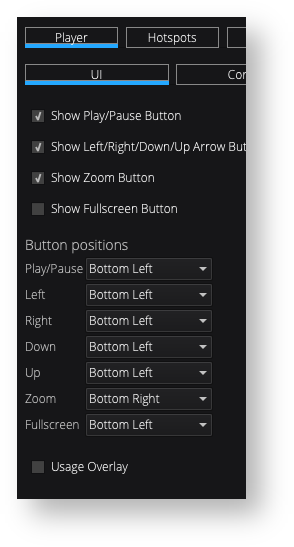

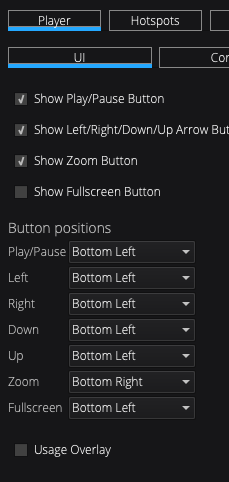

  7. In the Player / UI settings we checked the Play/Pause, Show Left/Right Arrows, and Zoom

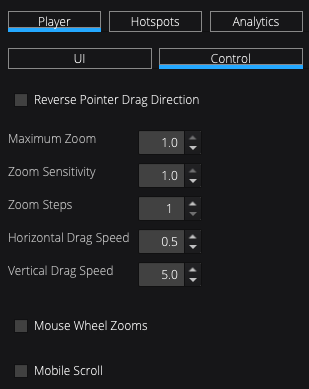

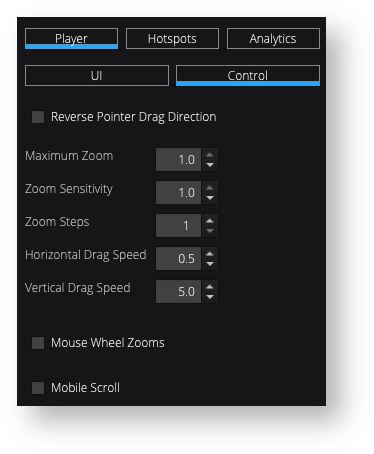

  8. In the Player / Control options we increased the Horizontal Drag Speed to 0.5
  9. In the Hotspots section we added two image hotspots.  One for the Heart and one for the Face.
  10. These hotspots were placed one by one on each frame.  We only hit the Next button at all times.
  11. When we finished with Advanced Settings we returned to the main paged and hit OK to save the 360 Creator output.

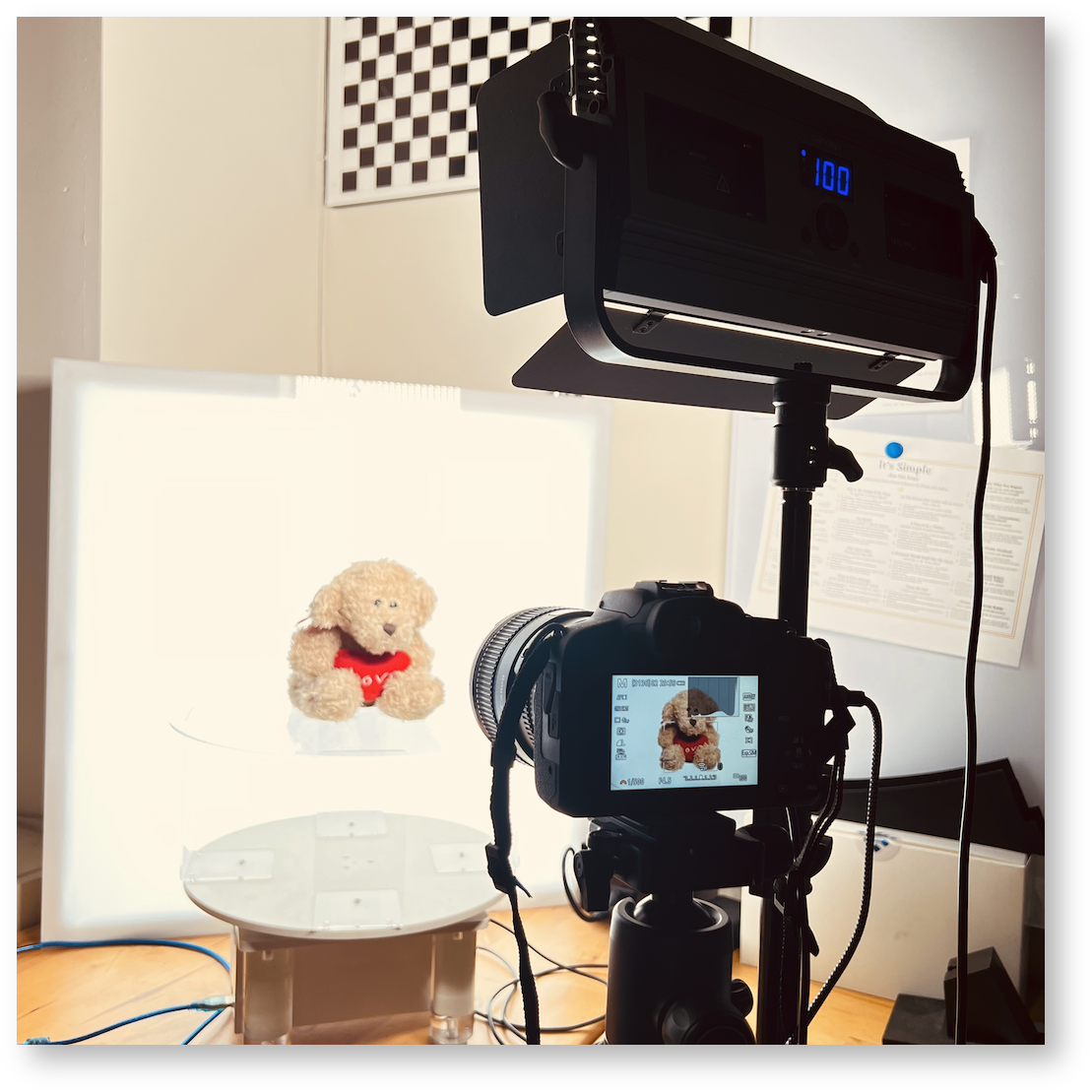

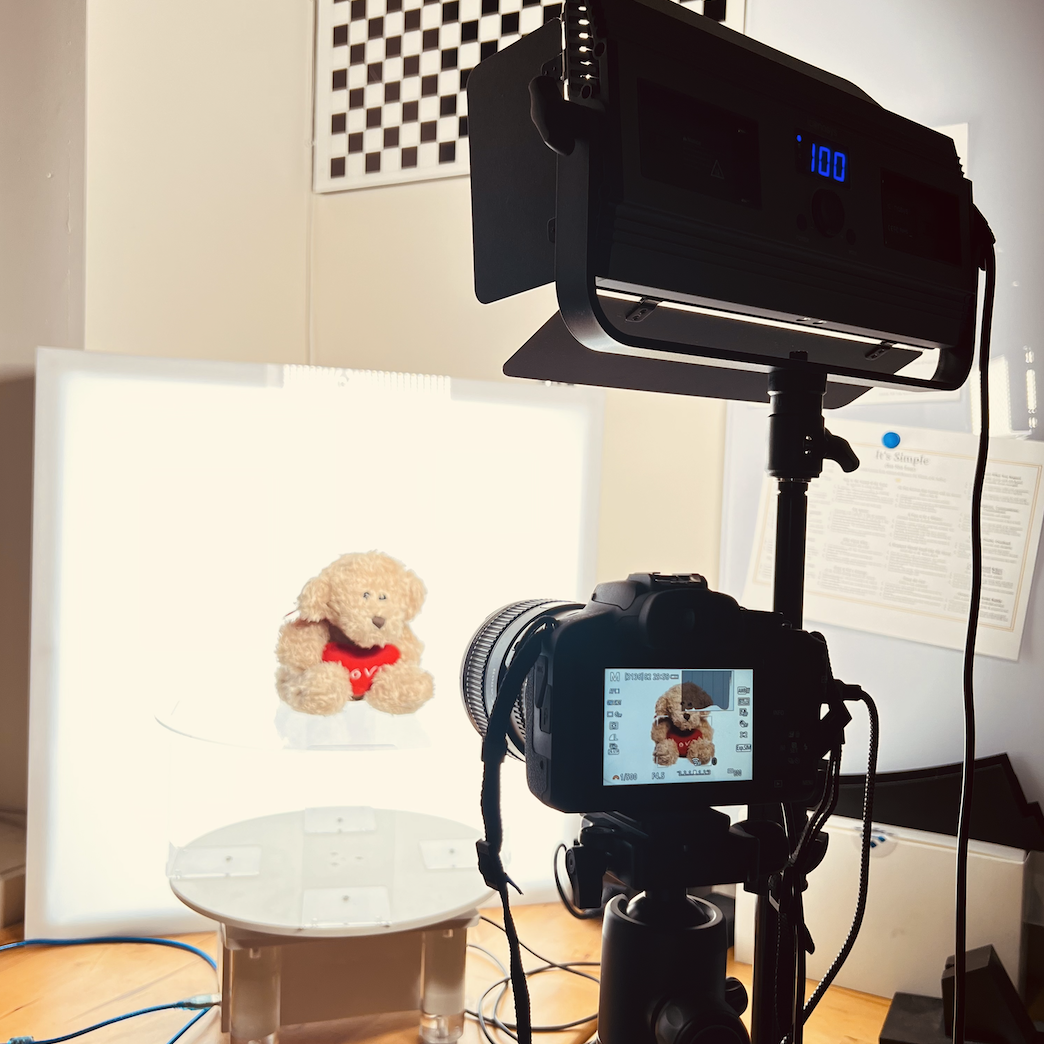

360 Shooting Setup


Knowledge Base (KB) for Visere Captura – available at Pictomic's Store . (KB Version 2.0.)
